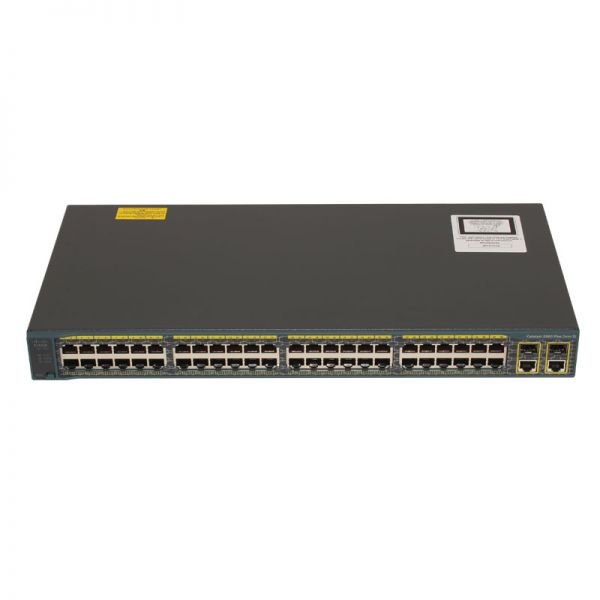

Cisco Catalyst 2960-Plus 48 Ports LAN Lite Switches, supporting 48 x 10/100 ports, are designed for branches, conventional office workspaces, and infrastructure networks.
WS-C2960+48TC-S Specification |
|
| Configurations | |
| 10/100 Ethernet Interfaces | 48 |
| Uplink Interfaces | 2 (SFP or 1000BASE-T) |
| Cisco IOS Software Feature Set | LAN Lite |
| Available PoE Power | None |
| Hardware | |
| Flash memory | 64 MB |
| DRAM | 128 MB |
| Performance and Scalability | |
| Forwarding bandwidth | 16 Gbps |
| Maximum active VLANs | 64 |
| VLAN IDs available | 4K |
| Maximum transmission unit (MTU) – L3 packet | 9000 bytes |
| Jumbo frame – Ethernet frame | 9018 bytes |
| Forwarding Rate: 64-Byte L3 Packets, Millions of packets per second | 10.1 |
| Mechanical | |
| Dimensions (H x W x D) | 1.73 x 17.70 x 9.52 in (4.4 x 45.0 x 24.2 cm) |
| Weight | 8 lb (3.6 Kg) |
| Package Weight | 17.64 lb (8.0 Kg) |
| Environmental Ranges | |
| Operating temperature up to 5000 ft (1500 m) | 23º to 113ºF
(-5º to 45ºC) |
| Operating temperature up to 10,000 ft (3000 m) | 23º to 104ºF
(-5º to 40ºC) |
| Short-term exception at sea level* | 23º to 131ºF
(-5º to 55ºC) |
| Short-term exception up to 5000 feet (1500 m)* | 23º to 122ºF
(-5º to 50ºC) |
| Short-term exception up to 10,000 feet (3000 m)* | 23º to 113ºF
(-5º to 45ºC) |
| Short-term exception up to 13,000 feet (4000 m)* | 23º to 104ºF
(-5º to 40ºC) |
| Storage temperature up to 15,000 feet (4573 m) | 23º to 158ºF
(-25º to 70ºC) |
| Operating altitude | Up to 10,000 Feet
(Up to 3,000 Meters) |
| Storage altitude | Up to 13,000 Feet
(Up to 4,000 Meters) |
| Operating relative humidity | 10% to 95% noncondensing |
| Storage relative humidity | 10% to 95% noncondensing |
| Sound Pressure, dBA | Typical, LpAm: 33
Maximum, LpAD: 36 |
| Sound Power, dbA | Typical, LwA: 43
Maximum, LwAD: 46 |
| MTBF in thousands of hours | 623 |
