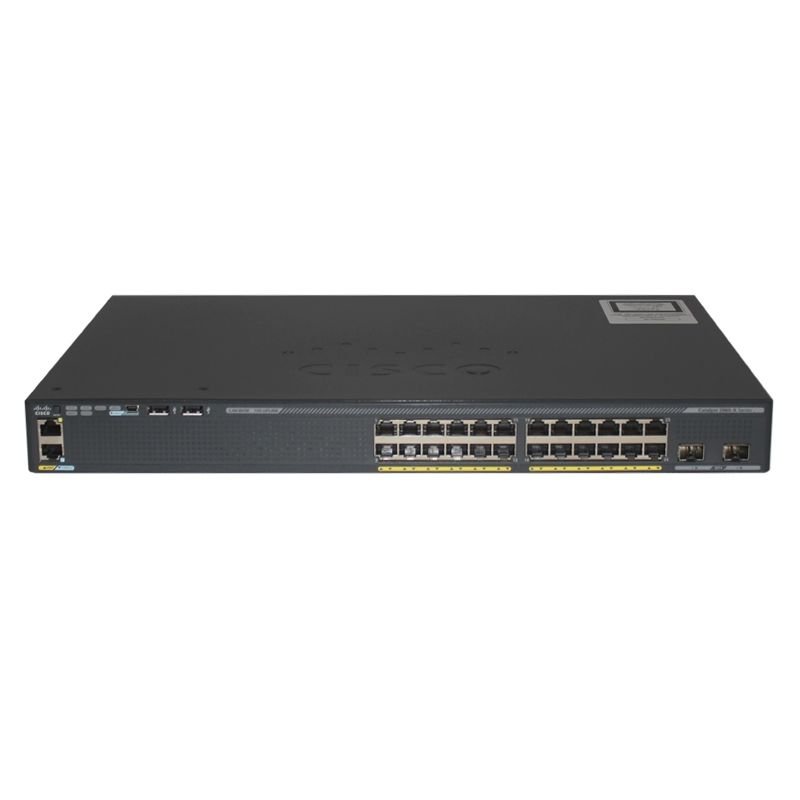

WS-C2960X-24TD-L

WS-C2960X-24TD-L Specification

Enclosure type

Rack-mountable – 1U

Ports

24 x 10/100/1000 + 2 x 10G SFP+

Network management Interface

10/100 Mbps Ethernet (RJ-45)

Available PoE Power

None

Forwarding bandwidth(Gbps)

108Gbps

Maximum stacking number

8

Stack Bandwidth

80 G

Forwarding Performance

95.2Mpps

Switching bandwidth

216Gbps

Maximum active VLANs

1023

MAC Address Table Size

16K (default)

CPU

APM86392 600MHz dual core

RAM

256 MB

Flash Memory

64 MB

Status Indicators

Per-port status: Link integrity, disabled, activity, speed, and full duplex System status: System, RPS, Stack link status, link duplex and link speed

Expansion / Connectivity

Console ports

USB (Type-B), Ethernet (RJ-45)

Stacking cable

Optional

Power Redundancy

Option (PWR-RPS2300)

Voltage range (Auto)

110V-240V

Power Consumption Operational

0.034KVA

Miscellaneous

Width

17.5 Inches (44.5 cm)

Depth

11.0 Inches (27.9 cm)

Height

1.75 Inches (4.5 cm)

Weight

8.9 lb (4.0 Kg)

Package Weight

20.26 lb (9.19 Kg)

Rack Mounting Kit

optional

 MTBF in hours

569,520

Compliant Standards

● IEEE 802.1D Spanning Tree Protocol
● IEEE 802.1p CoS Prioritization
● IEEE 802.1Q VLAN
● IEEE 802.1s
● IEEE 802.1w
● IEEE 802.1X
● IEEE 802.1ab (LLDP)
● IEEE 802.3ad
● IEEE 802.3af and IEEE 802.3at
● IEEE 802.3ah (100BASE-X single/multimode fiber only)
● IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports

● IEEE 802.3 10BASE-T
● IEEE 802.3u 100BASE-TX
● IEEE 802.3ab 1000BASE-T
● IEEE 802.3z 1000BASE-X
● RMON I and II standards
● SNMP v1, v2c, and v3
● IEEE 802.3az
● IEEE 802.1ax
